Always stay focused with

the INVIZ video endoscope video probes



RF (Remote Focus) with patented LLP (Linear Lens Positioning) means no detail is missed (30µm resolution at 2mm distance = 1/33 mm)!

工业内窥镜,水下电视,紫外uv视频内窥镜
2mm close up, Remote Focus adjusted

Save time, money and improve inspection results. From close up to distant focus, fingertip control adjusts the image quality quickly and accurately.

工业内窥镜,水下电视,紫外uv视频内窥镜
Far focus ∞, in DN 500 using long time exposure

Video endoscopes need to bring light into the dark. Taking advantage of the innovation and performance boost of the polymer fibre hybrid LED's, these new VUMAN video endoscope versions deliver a homogenous RAY of light, with far better performance, illumination, reproducibility, constant light color and no wearing, than many heavy gas discharge light sources.



工业内窥镜,水下电视,紫外uv视频内窥镜
Remote Focus not adjusted



  • The high power LED light source with lifetime guarantee provides powerful and constant homogenous illumination. Constant color spectrum throughout the whole, extremely long lifetime enable best color reproduction and highest efficiency.

  • INVIZ “RF ready” video probes allow a wide range of remote visual inspections to be carried out quickly and accurately and without the need to change optical adapters - from very small access tubes to long distance inspection in huge cavities.

  • [x-way], 360° articulating video endoscope camera head with easy remote joystick operation.

  • Always in focus with the exclusive viZaar linear lens positioning. The new standard in remote visual inspection. Developed by our German engineering team, it provides the best video endoscope optical system performance and image quality around.

工业内窥镜,水下电视,紫外uv视频内窥镜

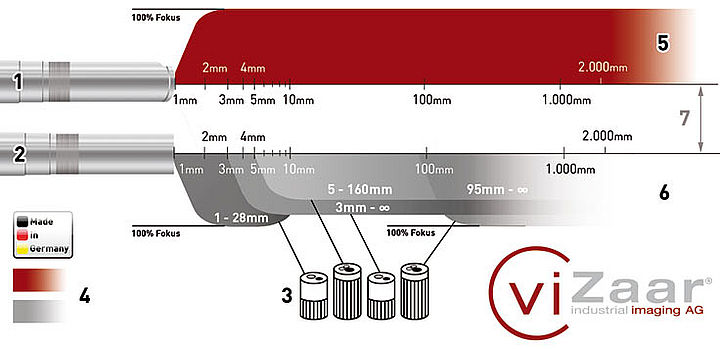

1) NEW and unique! Remote Focus. Always stay focused without changing adapters

2) Conventional fix focus video endoscope systems

3) Typical conventional video endoscope tip adapter

4) Depth of illumination - depending on environment

5) UNLIMITED - "Remote Focus” means every inspection can be carried out in one visual inspection

6) LIMITED (tip adapter) - A tip adapter is very limited; to complete an inspection several may be required. Tip adapters absorb light, reducing image clarity.

7) Depth of focus & depth of illumination
