蒸汽发生器目视检测专用视频内窥镜








德国威萨核电蒸汽发生器检测专用视频内窥镜

全球顶级剑形工业视频内窥镜提供完美的照明和成像效果

采用全球最新的LED 照明技术,易折损的传统光导纤维导光技术将成
为历史;25 流明输出强度配合独有的Turbo模式可以为4” / 100mm 管道
空间提供优良的辅助照明效果;为客户提供两种可选视角的选择(100°
FOV and 60° FOV) 使用者可以根据蒸汽发生器的结构特点选择适合自己的
探头视角类型,德国威萨INVIZ® DE 2.4 全球顶级剑形工业视频内窥镜,
凭借清晰、色彩还原真实的内窥图像、符合蒸汽发生器结构特点的独有
的外形设计、德国制造品质的专业工装,将成为您得心应手的专用目视
检测工具。

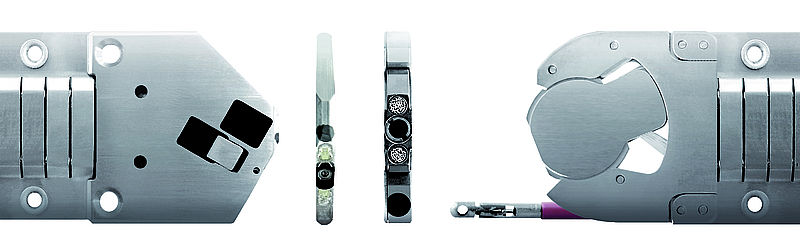

它的厚度只有2.4mm,德国威萨 DE2.4 剑形工业视频内窥镜可以非常容易的输送到非常狭窄的管间区域进行检测,专门为紧凑化设计的核电专业蒸汽发生器管间检测而设计制造,例如Siemens KWU 系列和传统的热交换器。



德国威萨INVIZ® DE 2.4 全球顶级剑形工业视频内窥镜亦可用来检测一些特殊领域狭窄缝隙的内部检测,这些是以前传统圆形视频内窥镜所到达不了的位置。



我们的德国工程师团队竭尽全力去设计和制造全球最好的剑形工业视频内窥镜,使得探头整体具有柔韧性、高强度材料保护和耐磨性能的完美统一;探头的输送可以用手工完成亦可与输送机器人一起协同工作。
德国威萨INVIZ® DE 4.0 虽然只有4mm,凭借德国威萨深厚的技术积淀和制造实力,可以实现上下30度镜头视角调整功能;根据蒸汽发生器结构特点和客户的特殊要求,德国威萨可以为客户提供特殊化定制解决方案,提供不同镜头视角和视野的选择,工作长度最长可延伸至15M。请不要忘记在如此狭小的空间内,不仅集成了高清晰度镜头、高强度LED照明光源,最关键的是为核电客户预留了最常用的异物抓取机械手通道。

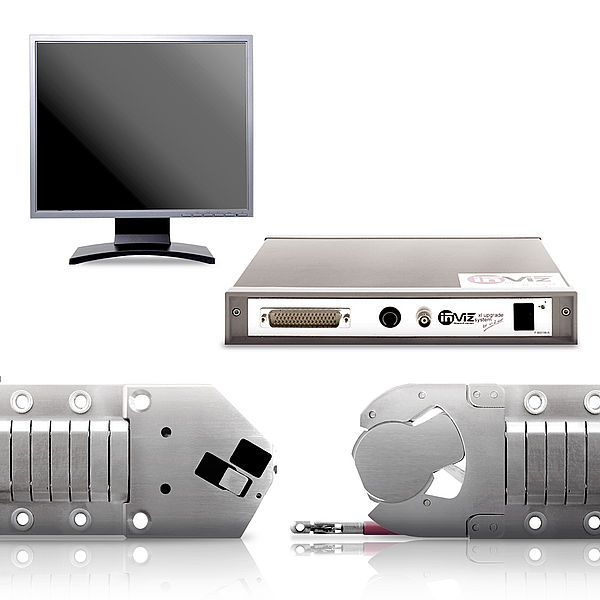

Control Unit

Power Supply

96-256VAC 50/60Hz

Dimensions

Standard: (W) 260 mm x (L) 205 mm x (H) 45 mm

Control Options

Illumination, white balance

Video Outputs

Composite VBS, S-VHS (Y/C) out, NTSC or PAL (depends on camera)

Options

Digital output for INVIZ LCD image recorder

Other

19" version available The CCU suppotrs only DE 2.4 / 4.0 cameras





Video Endoscope Camera INVIZ DE 2.4

Video

PAL video 380 TV lines / 290.000 pixel
NTSC video 330 TV lines / 250,000 pixel

Optic

100° FOV Standard optics, 3 mm to 200 mm fixfocus. optional: 60° Teleoptic (not changable).

Recommended Usage Instructions

Using with 14” CRT monitor, 100° FOV: 10x / 20 mm distance

Illumination

2 high performance white light LEDs optional: Fiber and LED illuminaton for the enhancement of luminous intensity

Dimensions

Width: 2.40 mm (± 0.03 mm), other versions are available on customers request

Water Resistance

0,1 bar / 1,45 psi





Video Endoscope Camera INVIZ DE 4.0

Video

PAL video 470 TV lines / 440.000 pixel (H752xV582)
NTSC video 460 TV lines / 380.000 pixel (H752xV582)

Optic

Adjustable focus, 60° FOV, 3 mm to infinite, typical working range 8 mm to 100 mm. Viewing direction adjustable by ± 30°.

Recommended Usage Instructions

Using with 14” CRT monitor, 60° FOV: 18x / 20 mm distance

Illumination

Identic DE 2.4 version, no fiber illumination possible

Dimensions

Width: 4.0 mm (± 0.05 mm), Other versions are available on customers request

Water Resistance

0.5 bar / 7.5 psi

Other

2.1 mm drilling for the use of external parts recovery tools





Probe

Working length

Standard 2 meter, extension up to 5 meter possible

Lead

2.5 meter PU coated, extension up to max. 10 meter (DE 2.4) or 15 meter (DE 4.0) complete length possible

Driving Belt

Open and flexible installation band with regular rectangular recesses for a reliable feed through a (not included) motor drive unit. Through the optimal fiber glass epoxy reinforcement in the inner of a belt , there is a safer and simple operation ensured without manipulator and without kinking during the operation.





Environmental Conditions / Memory

Operating Conditions of Camera

-25°C to 65°C LED head | -25°C to 80°C without LED

Operating conditions of control unit

-20°C bis 45°C

Gamma / Neutrons - strength

This value is not specified due to the partly large lifetime deviations. The value is within the average of semiconductor.




All specifications are subject to change without notice due to technical progress.
