The video endoscope software is modular

and upgradable for your individual visual testing

requirements, for now and your future projects.

With various equipment variants and optional extension kits, you can optimally prepare your video endoscope inspection system to your requirements and your budget. The modularly upgradable video endoscope system concept and the INVIZ videoscope interchangeable probes ensure best preparation and investment for your changing applications in the future.


工业内窥镜,水下电视,紫外uv视频内窥镜



Inspection, analysis and documentation couldn’t be easier. The pass-code secured video endoscope INVIZ VUMAN RA-Y offers up to nine password-protected user accounts including individual system settings. Multiple users can benefit from the video endoscope. Your individual data and system settings are protected and available on demand.

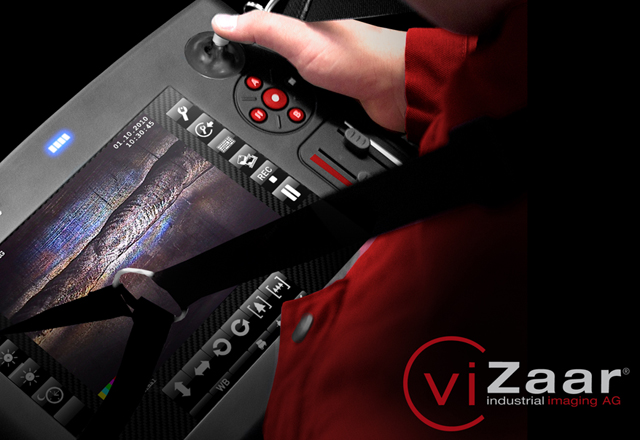

Fingertip joystick navigation of the videoscope INVIZ VUMAN RA-Y probe, which can easily be locked in position for detailed examinations. The automatic mode of the high power LED light source and the optional Remote Focus ensure high-class image quality at anytime. Its advanced optical design, excellent light transmission and intelligent image processing maximises the performance of the video endoscope, even in very dark and large cavities.


工业内窥镜,水下电视,紫外uv视频内窥镜

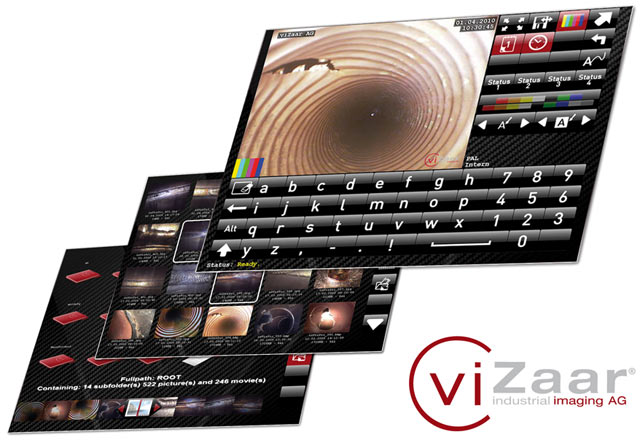

Digital videos and images for error analysis and processing are saved in full resolution (loss-free), 32 bit depth. Up to 300 hours full resolution recording can be quickly transferred via the USB 2.0 interface. Standard digital documentation allows easy communication of results in Windows compatible formats such as JPG, BMP, MPEG or AVI. The filing system with the instant preview function delivers immediate access to results. Comparison with reference cases is simple, thanks to the smart file management system with “Zoom By Move Over” picture gallery. Other equipment or older video recordings can be connected and digitally record onto your video endoscope INVIZ VUMAN RA-Y. The system is very intuitive to use.


工业内窥镜,水下电视,紫外uv视频内窥镜



Never get lost with the complete and detailed user manual installed on your video endoscope INVIZ VUMAN RA-Y inspection system. Quickly find the desired page or topic.



In case of difficult situations during your inspection, your videoscope INVIZ VUMAN RA-Y keypad offers one-click direct access to the most frequently used features such as probe lock, snapshot and recording. White balance, contrast and brightness functions ensure detailed, true colour images for accurate assessment and decision making. Details can be highlighted with the zoom, rotate, flip or mirror function for accurate image presentation.

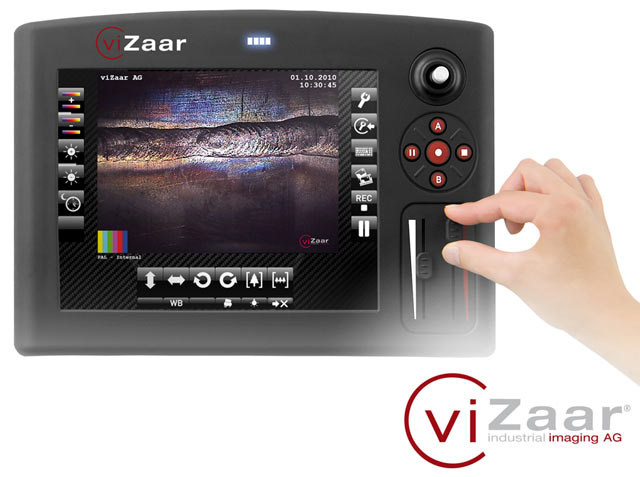

The adjustable, high resolution 10.4” transreflective screen (1024 x 768 px) provides detailed images for analysis both indoors and outdoors. Observation notes can be added using the touch screen keyboard and an external VGA output allows transfer of images to additional monitors or other locations.
